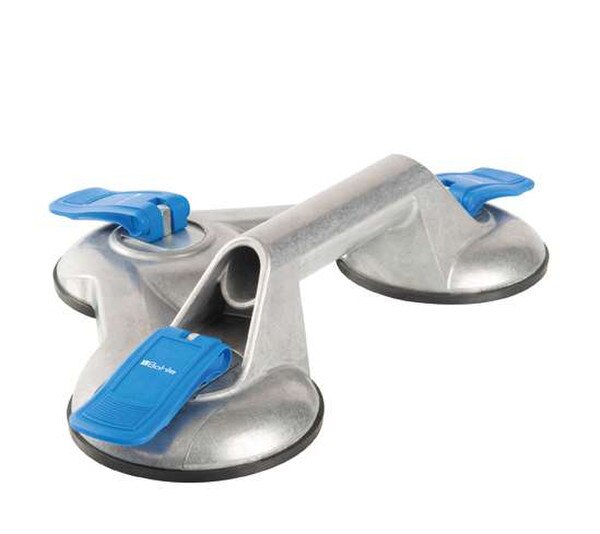

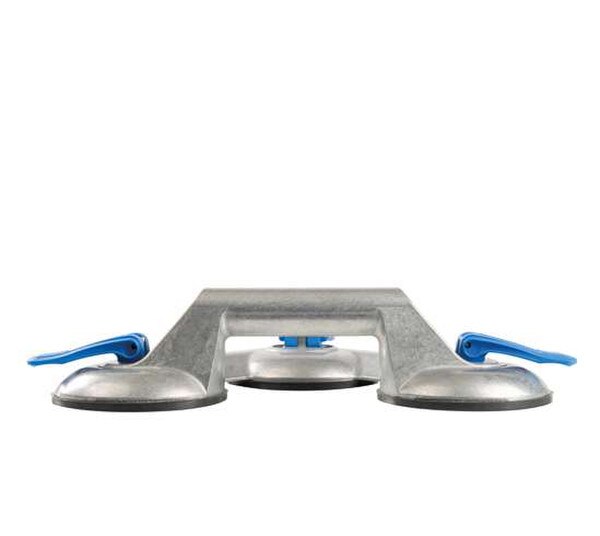

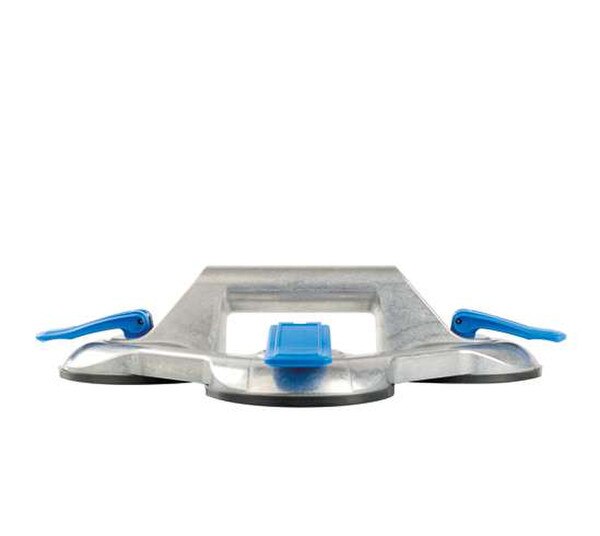

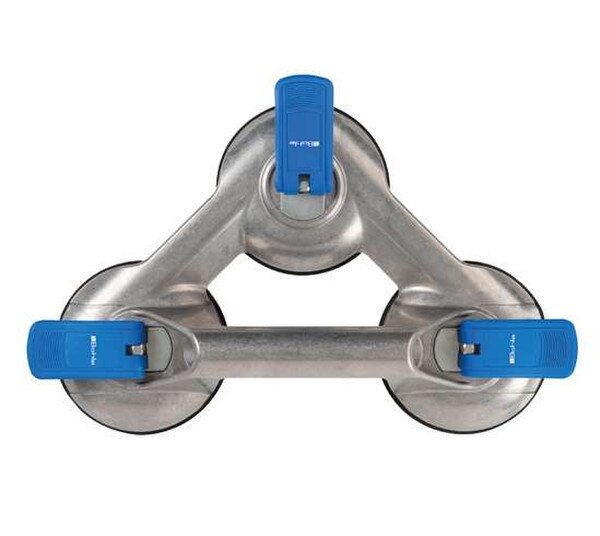

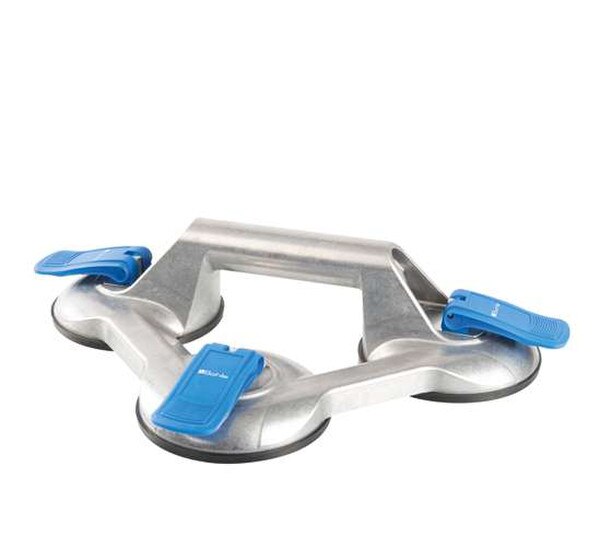

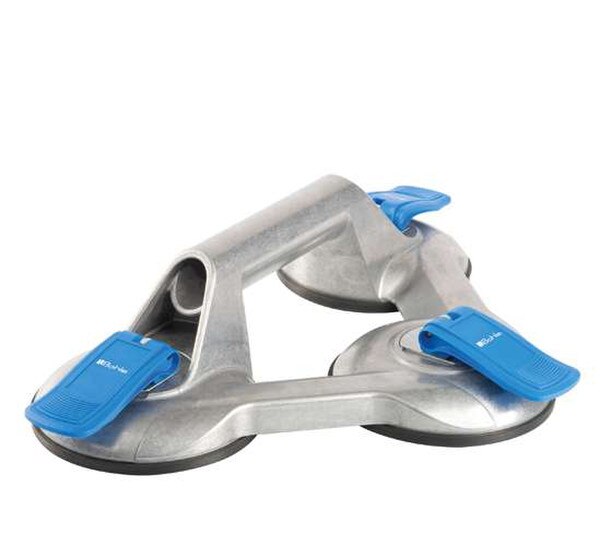

Veribor - Suction Lifter 120mm Fixed Tri Cup - Aluminum Frame - Lever Action - 220lb Capacity

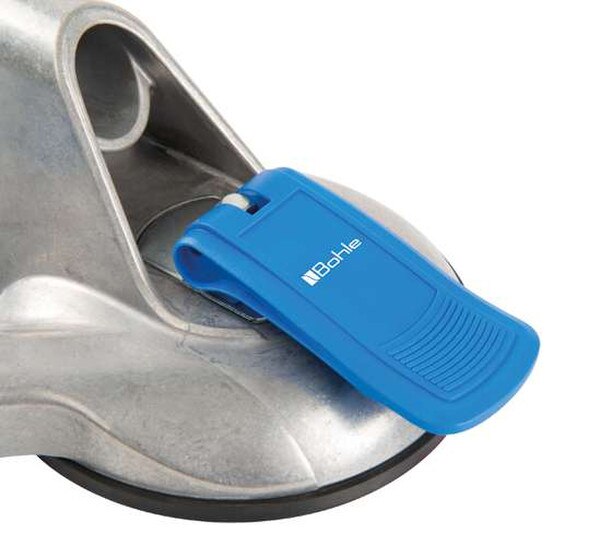

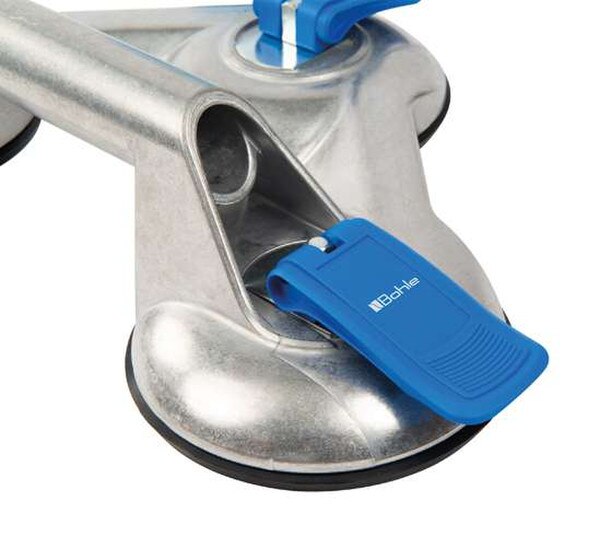

The high quality BO 603.021 suction lifter from the Veribor® brand is the ideal device for lifting and transporting gastight sheet materials. Independently of the material, the suction lifter carries a weight of up to 100 kg, including a two-fold safety factor. The design of the suction lifter is high quality and functional at the same time. While large suction heads enable an optimum distribution of vacuum pressure along the external rim of the rubber pad, the wide contact area of the levers ensures an ideal force absorption when engaging the lever – no matter whether this is done with the ball of the hand or the thumb. Large washers provide additional safety for the levers. The third lever can be rotated by 90° in two directions. In this way, the width of the 3-cup suction lifter is reduced, enabling greater flexibility of use. Manufactured with tested Bohle quality
Veribor® is a quality brand of Bohle Group. The products have been developed and manufactured exclusively in Germany since 1953 – with a special focus on safety and ergonomics thanks to a multi-stage test procedure. They are free from carcinogenic hydrocarbon compounds (PAH).

High quality Veribor® suction lifter with three suction heads
100 kg carrying capacity with two-fold safety factor
For all gastight surfaces
Made of lead-free aluminium
Free from carcinogenic hydrocarbon compounds (PAH)
Made in Germany

Product highlights

• Tested safety thanks to high Bohle standards
• 100 kg carrying capacity with two-fold safety factor
• Sturdy construction
• Simple operation
• Made in Germany

Accessories

• Optional storage case BO 5009418
• A practical carrying case serves for protecting and storing your Veribor® lever-activated suction lifters safely. It is aligned to the shape of the suction lifter and thus protects the rubber pads from damage. The case offers space for two Veribor® lever-activated suction lifters.
• Veribor® spare rubber pad set BO 614.021

Technical Data

• Type of vacuum generation Lever-Activated Suction Lifters
• Load capacity 100 kg
• Lifting direction parallel
• Material of Suction Lifter aluminium
• Surface geometry flat
• Suction pad ø 120 mm
• Number of suction pads 3
• Vacuum gauge no
• GS certified no
• Max temperature 104° F
